hwOS tech: Version 3.14 Beta 3

Post by heinrichsweikamp »

Hi all,

Attached to this post, you can download the beta version for the upcoming hwOS version. Beta versions can only be installed on TECH enabled OSTC.

Besides smaller, uncritical fixes (e.g. in the language files) there are basically two changes compared to the 3.13:
- Simplified handling when using inactive gases during the dive (For unplanned gas changes) (Thanks to User enRigo for helping with this, see: viewtopic.php?f=6&t=22147 )

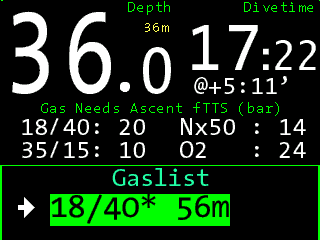

- the big layout display got a new dive menu with larger fonts (Preliminary in this version):
How to install this version: viewtopic.php?f=6&t=14509

Feedback please here in this post but please be patient if you have questions.

A few years ago somebody posted here "It's called holiday for a reason." -> Our office will be closed for the next week or so :-)

regards,
Matthias
Attachments
314_beta2_EN_3_cr_ostc3_firmware.zip
(189.29 KiB) Downloaded 98 times
Last edited by heinrichsweikamp on Monday 1. February 2021, 16:41, edited 1 time in total.
Clownfish
Posts: 164
Joined: Sunday 1. July 2012, 15:22

Re: hwOS tech: Version 3.14 Beta 2

Post by Clownfish »

Loaded this on my OSTC 2 and today did a dive. Worked great but when I went to download the dive using Subsurface, it downloaded every dive. Something wrong?

Michael
Sydney
Australia
Michael
Sydney
Australia
OSTC 2 11528
heinrichsweikamp
Posts: 4131
Joined: Sunday 13. May 2007, 18:07

Re: hwOS tech: Version 3.14 Beta 2

Post by heinrichsweikamp »

Hi,

No, this seems unrelated to me. Maybe you checked the "Download all dives" box in the subsurface downloader?

There are no changes regarding the download or logbook in this version.

regards,
Matthias
Clownfish
Posts: 164
Joined: Sunday 1. July 2012, 15:22

Re: hwOS tech: Version 3.14 Beta 2

Post by Clownfish »

Okay, I did nothing different to downloading that I know of and yesterday it worked okay, only downloading that day's dive. Strange, never happened before.

MIchael
Sydney
Australia
Michael
Sydney
Australia
OSTC 2 11528
algo
Posts: 41
Joined: Monday 26. January 2015, 20:08

Re: hwOS tech: Version 3.14 Beta 2

Post by algo »

Hi,

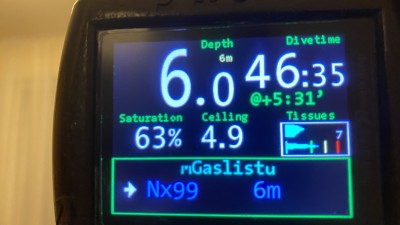

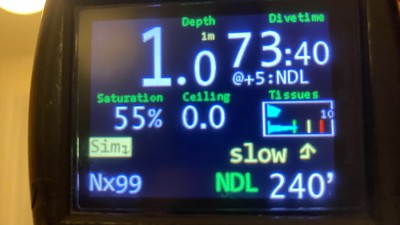

did a dive and played a little bit with the Simulator. Big fonts are nice, and Gas change (to deactivated mixes) with updated deco plan is more intuitive now. I discovered only two small layout bugs on my OSCT2...

1) With a leading tissue >9 the box around is overwritten

2) When going going do Main Menu --> Gas list some "ghost letters" are visible...

BR
Alex
Attachments
algo
Posts: 41
Joined: Monday 26. January 2015, 20:08

Re: hwOS tech: Version 3.14 Beta 2

Post by algo »

Hi,

i played a little bit more with the Beta 2 simulation and found something i don't unterstand (maybe that is intended, than i want to understand):
- two active gases
1) Air (First, max. depth 51m)
2) Tx 15/45 (Work, max. depth 76m)

I simulate a dive to 60m. At 51m the OSTC asks for a gas change to Tx 15/45, which i acknowledge. But it starts a red blinking max. depth warning. Which remains until ascent above 51m. I thought the max. depth warning is showing a too high ppO2 (MOD) and should only be active when above the set limits. Limits are set to 1.30 bar for work and 1.60 bar for deco. So to me it seems that the OSTC is not considering the change from Air to Tx 15/45 with regard to the ppO2 limits / max. depth warning... (ppO2 at 60m: Air 1.491bar / Tx 15/45 1.065bar)... or i am missing something?

Thanks!

Alex
dadefay
Posts: 86
Joined: Thursday 2. February 2017, 15:39

Re: hwOS tech: Version 3.14 Beta 2

Post by dadefay »

Hi Alex,

I did the same test with your settings on my OSTC Plus, I didn't get the problem you describes, the simulator gives expected results !

Best regards.
Didier A. Defay
OC trimix instructor / ART CCR diver
France

OSTC Plus #16077
- OSTC 3+ #4806
-- OSTC 3 #3999
Sp3xX
Posts: 3
Joined: Tuesday 19. December 2017, 21:30

Re: hwOS tech: Version 3.14 Beta 2

Post by Sp3xX »

Dear all,

will the fix „ Simplified handling when using inactive gases during the dive “ be applied to the „non TECH“ Version as well?

Cheers,
Alex
heinrichsweikamp
Posts: 4131
Joined: Sunday 13. May 2007, 18:07

Re: hwOS tech: Version 3.14 Beta 2

Post by heinrichsweikamp »

Sp3xX wrote: Sunday 10. January 2021, 20:54 will the fix „ Simplified handling when using inactive gases during the dive “ be applied to the „non TECH“ Version as well?
Since the "sport" and the "Tech" version are build from the same code base for some while now: Yes. All the changes presented in this beta will eventually arrive in the stable "sport" versions.

Regards,
Matthias
heinrichsweikamp
Posts: 4131
Joined: Sunday 13. May 2007, 18:07

Re: hwOS tech: Version 3.14 Beta 2

Post by heinrichsweikamp »

algo wrote: Wednesday 6. January 2021, 13:06 1) With a leading tissue >9 the box around is overwritten
2) When going going do Main Menu --> Gas list some "ghost letters" are visible...
Thanks! Easy to fix and an obvious bug in the current routine here...

regards,
Matthias
algo
Posts: 41
Joined: Monday 26. January 2015, 20:08

Re: hwOS tech: Version 3.14 Beta 2

Post by algo »

Hi,

at least i found, what i was doing wrong... in the menu "Dive/Deco setup --> Stops & Depths" i defined a Depth Warning at 51m (sometime in the past, did not remember that option to be honest). So this is exactly what the OSTC was doing, giving this warning. I set the option back to 120m standard, and now the simulator it doing what expected.

[b]Sorry for any confusion.[/b]

BR
Alex

[quote=algo post_id=23061 time=1610297967 user_id=1482]
Hi,

i played a little bit more with the Beta 2 simulation and found something i don't unterstand (maybe that is intended, than i want to understand):
- two active gases
1) Air (First, max. depth 51m)
2) Tx 15/45 (Work, max. depth 76m)

I simulate a dive to 60m. At 51m the OSTC asks for a gas change to Tx 15/45, which i acknowledge. But it starts a red blinking max. depth warning. Which remains until ascent above 51m. I thought the max. depth warning is showing a too high ppO2 (MOD) and should only be active when above the set limits. Limits are set to 1.30 bar for work and 1.60 bar for deco. So to me it seems that the OSTC is not considering the change from Air to Tx 15/45 with regard to the ppO2 limits / max. depth warning... (ppO2 at 60m: Air 1.491bar / Tx 15/45 1.065bar)... or i am missing something?

Thanks!

Alex
[/quote]
heinrichsweikamp
Posts: 4131
Joined: Sunday 13. May 2007, 18:07

Re: hwOS tech: Version 3.14 Beta 3

Post by heinrichsweikamp »

Hi,

Attached to this post is the beta 3 of the 3.14 TECH firmware. The big font dive mode menu should now be fine and we fixed an issue with a (barely visible) pulsing screen brightness on some hardware versions.

Regards,
Matthias
Attachments
314_beta3_EN_3_cr_ostc3_firmware.zip
(204.34 KiB) Downloaded 56 times
User avatar
gr3yw0lf
Posts: 57
Joined: Thursday 28. November 2019, 22:18

Re: hwOS tech: Version 3.14 Beta 3

Post by gr3yw0lf »

hm...

just asking: wouldn't it be time for a release? :twisted:
life is better in fins

OSTC Plus #18168
heinrichsweikamp
Posts: 4131
Joined: Sunday 13. May 2007, 18:07

Re: hwOS tech: Version 3.14 Beta 3

Post by heinrichsweikamp »

Hi,

Update is basically ready. Due to limited availability of some parts we had to made some changes to the next OSTC2/Plus electronics and I'd like to wait until the production parts for the next batch arrive.

Regards,
Matthias
